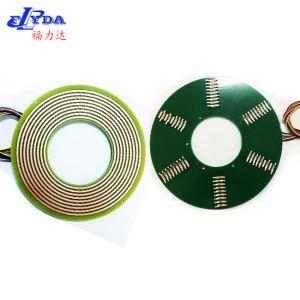

Pancake slip ring as a another form of through hole slip ring, which are designed for somewhere vertical space is limited while horzontal space is less restrictive. special high vacuum sealing technology&precious metal brush ensure the high reliability transmitting and rotating performance of slip ring.

FL P 025 Specifications(Standard)

• Contact Material

  Precious metal brush,Silver plated rings

• Current Rating

  2A per circuit

• Number of Circuits

  2

• Operating Speed

  300 rpm* continuous

• Lead Wire

  UL Teflon® Awg28,Awg22,Awg16,Awg10 (150 mm)

• Voltage

  300 V

• Operating Temp.

  -40°C to 80°C

• Working Humidity

  60%RH

• Torque

  Approx. ≤16.25 g·m (for reference )

• Dielectric Strength

  ≥1000V@50Hz between each circuit

• Insulation Resistance

  800MΩ@ 300VDC

• Noise

  Less than 50 mΩ @ 6 VDC, 50 mA, 5 rpm

• Housing Material

  Aluminum Alloy

• Protection

  IP51

Flyda technology is a leading manufacturer of slip rings & Rotary joints. We commit ourselves to the development, design, manufacture and marketing of high-quality, extremely reliable and competitive cost precision products which are widely adopted in civil and military fields ranging from CCTV security, industrial automation, electric power generation, measurement instruments, medial equipments to building construction. Besides the power & signal combined slip rings, it also supplies multicircuits, high voltage, high speed, high frequency rotary joints and Hydraulic/pneumatic/encoder hybrid slip rings.

Our products are supplied to more than thirty provinces in China. It also has many distributors abroad, products exported to more than 50 countries. Hangzhou Prosper is also providing both OEM and ODM services for world famous brands and customers.

Welcome your inquiry~~
